Greenia Laminates are composite with imported decorative paper soaked with melamine resin and a multilayer of imported kraft paper soaked with phenolic resin. The decorative paper and kraft paper will be compressed continuously and uniformly by the Germany thermal compressor for more than one hour.

Greenia laminates are mainly served as indoor decoration. For instance, office furniture, ceiling, cabinet, door, desktop, partition, etc.

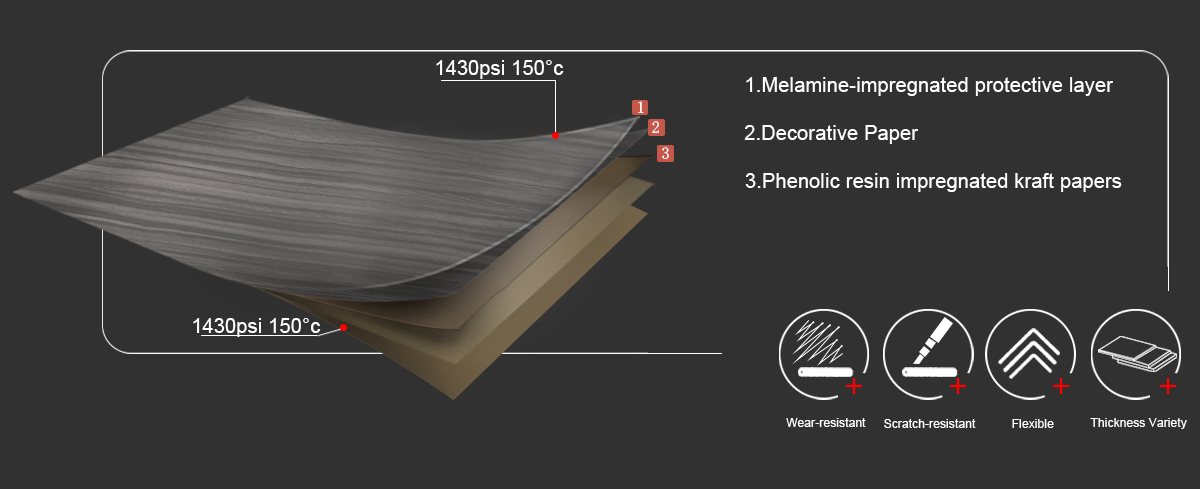

Product Structure

           Product Characteristics

Type	Flat Laminate	Post-forming Laminate
Common Thickness	0.8mm	0.7mm
Common Size	4'x8' (1220x2440mm)
	4'x10' (1220x3050mm)

Laminate physical performance	0.8mm fiat laminate	0.7mm postforming laminate	1.0mm flat laminate
	Greenia Typical Value	NEMA standard	NEMA standard
High Temperature Resistance	No effect	SL-Slight effect	SL-Slight effect
Cigarette Resistance	No visible change	SL-Slight effect	SL-Slight effect
Ball Impact Resistance	Height of impact resistance: 1025mm	≥500mm No change	≥900mm No change
Light Resistance	No effect	No effect	No effect
Scratch resistance	2N	≥1.5N	≥1.5N
Abrasion Resistance	≥400 cycles	≥400 cycles	≥400 cycles
Dimensional Stability
Machine Direction		1.1%(max.)	0.6%(max.)
Cross Direction		1.4%(max.)	1.0%(max.)

Note: NEMA Note: NEMA LD3:2005 is the national standard for high-pressure decorative laminate in the United States. Please read it carefully on the Greenia company website before using it. Website: www.kabie.cn
The typical value doesn't represent the product performance specification. The typical value may be different for different surfaces and decor papers. The values above are tested by SGS-CSTC Standards Technical Services Co., Ltd. If you need the test certificates, please contact our sales manager or call Greenia company at 0086-755-23354285.

Typical Fire Test Data

High-pressure laminates are subject to flame spread index (FSI) and smoke-developed index (SDI) in structures where codes establish such conditions.
Since the tested sample received a Flame spread index of 15 and Smoke Developed index of 20, it would meet the requirement of the Class A interior Wall & Ceiling Finish Category. The burning behavior test method is in accordance with ASTM E84:2011b Standard Test Method for Surface Burning Characteristics of Building Materials.
Typical values for Greenia laminates below are averaged from two specific tests:

Test ltem	Greenia Typical Values	The classes of flame spread index (FSI) and smoke- developed index in ASTM E 84 or UL 723
		Class A	Class B	Class C
Flame Spread Index (FSI)	15	0-25	26-75	76-200
Smoke-developed Index (SDI)	20	0-450	0-450	0-450
Note: Above datas are tested by SGS-CSTC Standards Technical Services Co., Ltd.
